| Model | Copmak SST 6750 Marine |
|---|---|
| Barcode | 8680023312148 |
| Energy | 400V 50Hz 4 kW 3~1P Three Phase |
| Engine Type | 5,5 Hp 2900 Rpm AC Engine |
Place of use : Designed for kitchens of cargo, passenger and military ship
Capacity : For three phase device, Kitchens that do not exceed 1200 people, 750 kg garbage disposal per hour
Production Place : Turkey
Quality Certificates : Marpol Annex V5 73/78 sertifika CE –IP65 Enerji Kutusu
Warranty Period : 4 years warranty against rust and corrosion, 3 years warranty against mechanical failures

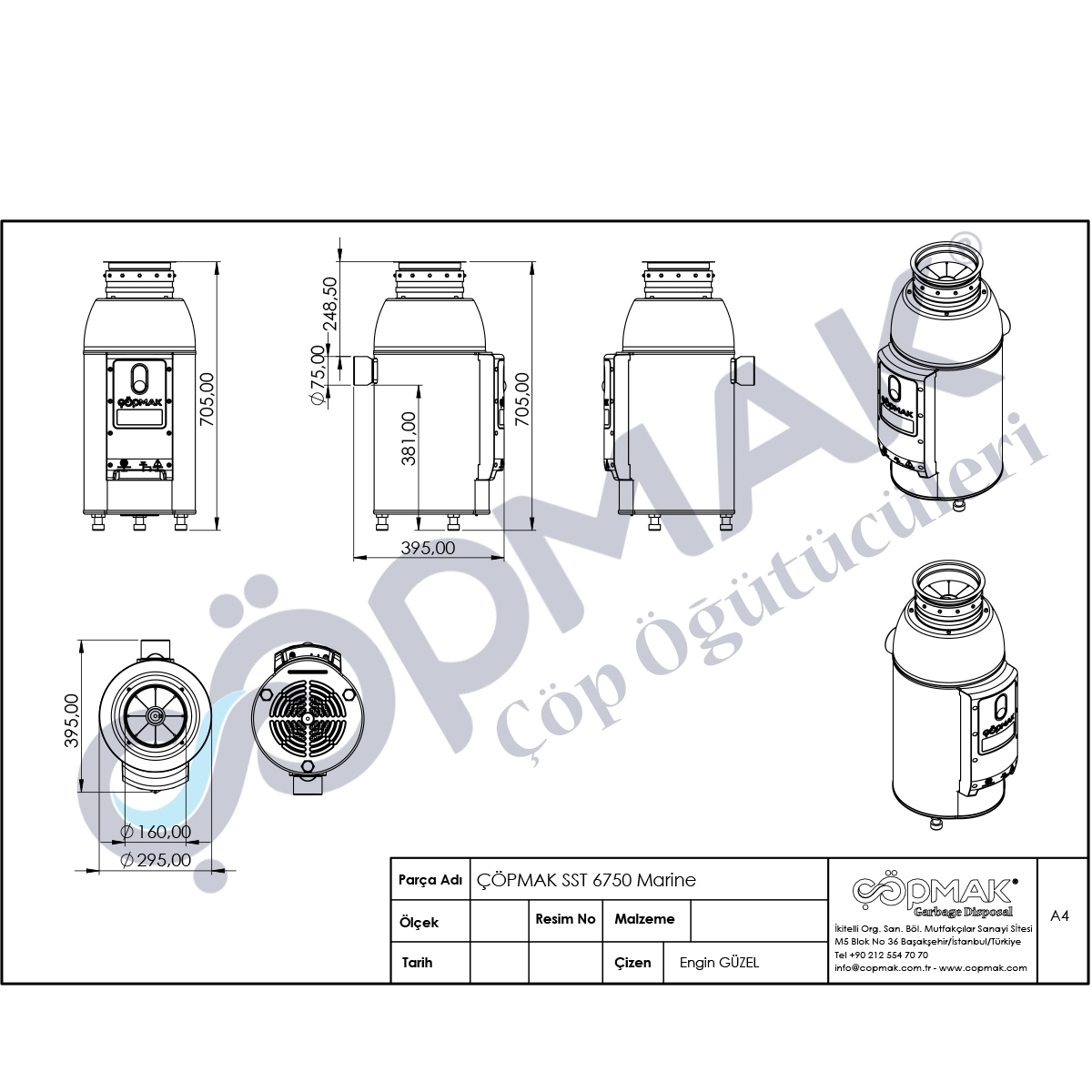

Dimensions : Garbage inlet 160mm and 75mm diameter waste water discharge, weight 43 kg
İkitelli OSB Mutfakçılar Sanayi Sitesi M5 Blok No:36 PK 34230 Başakşehir/İstanbul/Türkiye
444 9 040 Pbx
info@copmak.com.tr + 90 212 554 70 70 Pbx
+90 212 554 82 37
+90 533 206 79 96
BUY
INSTALLMENT OPTIONS
RETURN CONDITIONS
Explanation

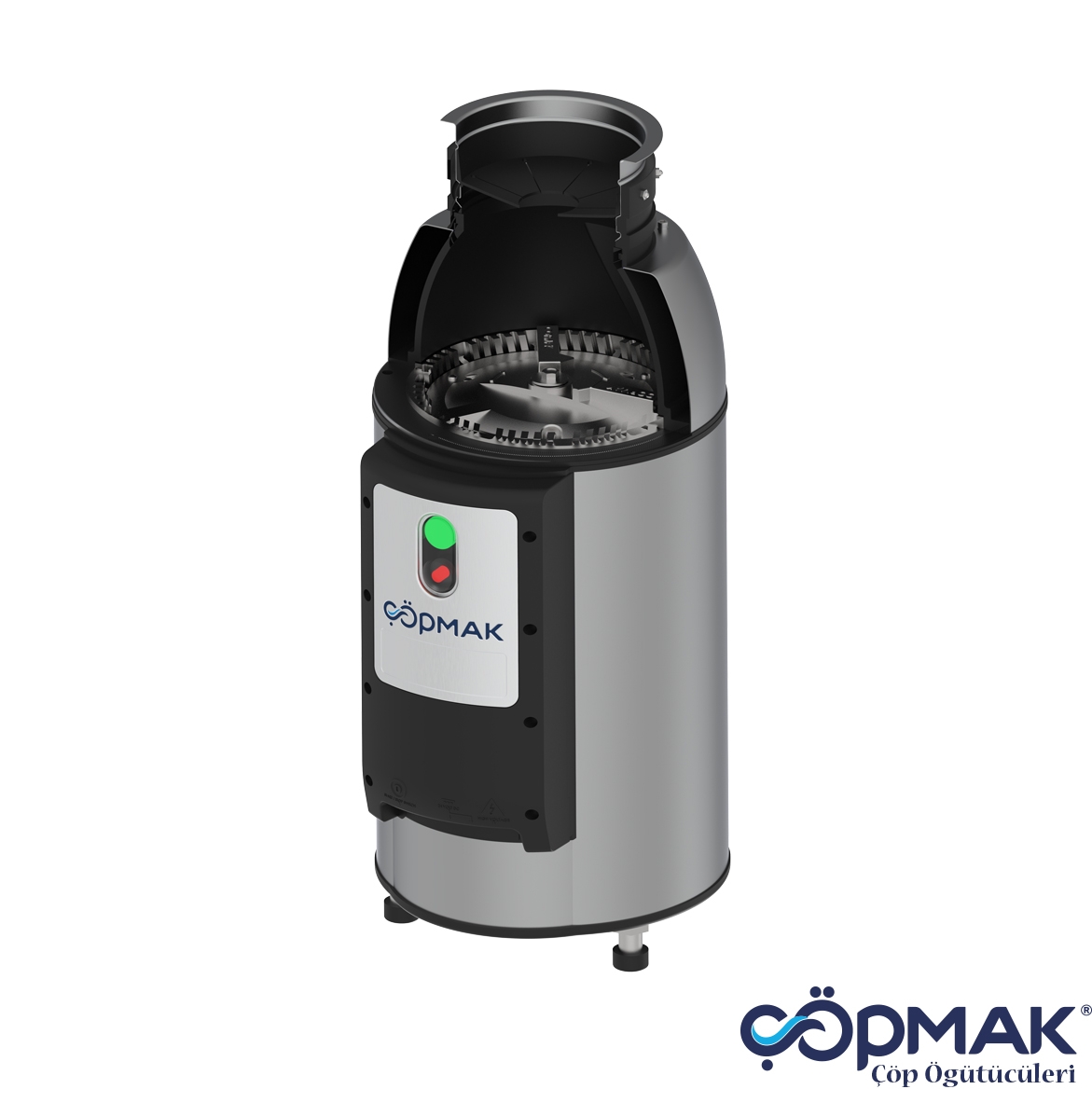

1) 304-quality stainless steel rotary disc and outer blade
2) Marpol Annex V5 73/78 certified
3) CE Certificate of Compliance with European Norms (accredited)
4) Waterproof IP 65 energy box suitable for the appliance
5) Pneumatic start button designed for humid environments (air-operated)
6) Magnet garbage inlet
7) 304-quality stainless steel perimeter sheet protects the device from water, dust, and impact
8) Audible safety thermal prevents the motor from burning out when solid objects are thrown into the device
9) Solenoid valve sprays water from two points when the device is running
10) 4 years warranty against rust and corrosion, 3 years warranty against mechanical failures
Technical Dimensions Pdf
Installation and Technical Data
User Manual
Technical Dimensions DXF
Technical Specifications
Spare Parts List
3D View
CE Certificate
Brochure
5,5Hp 3~1P 2900Rpm
8680023311615
5,5Hp 3~1P 2900Rpm
8680023312148
5,5Hp 3~1P 3480Rpm
8680023312179
